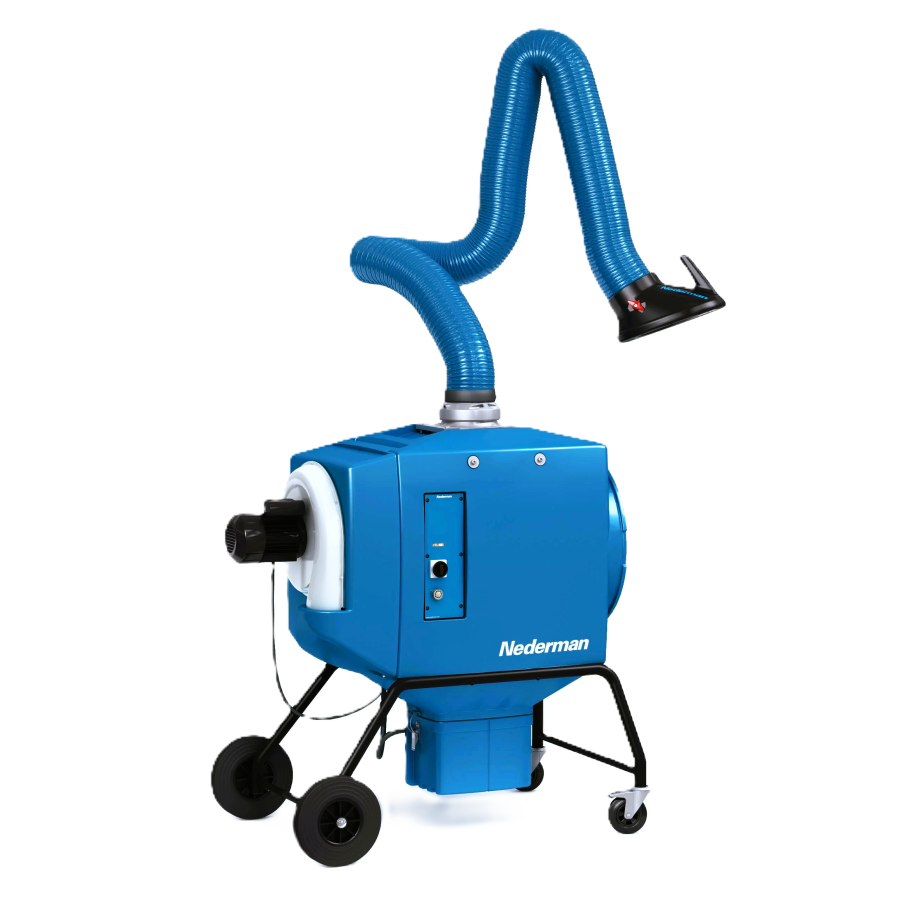

The FilterBox 10M is equipped with a N24 fan for a maximum air flow capacity of 1 000 m³/h (600 CFM) and is ideal for light to medium frequency dust or fume applications.

The unit has a filter supervision system which indicates with an audial alarm when the air flow is too low. The cleaning process is mechanical. An integrated silencer reduces noise from the fan and outlet air. Additional protection from harmful particles is provided if a HEPA filter is installed (optional). FilterBox 10M is available as a mobile unit on wheels or a fixed mount unit.

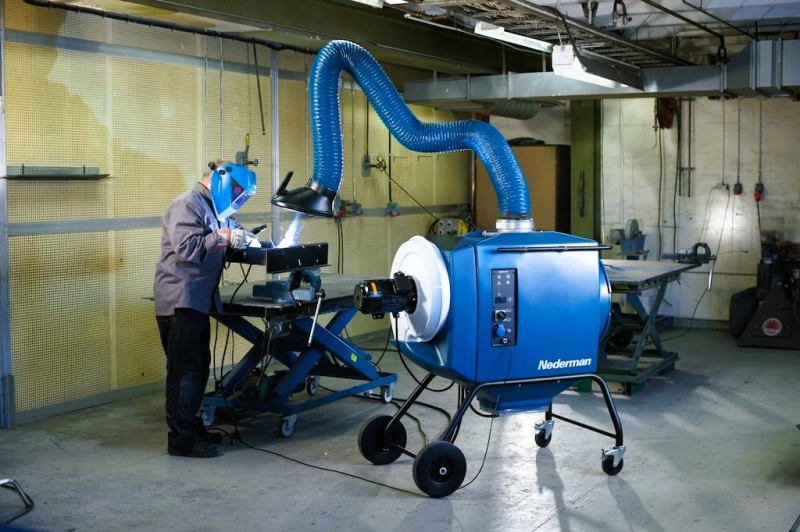

Filterbox 10M is suitable for welding applications such as TIG, MIG, MAG (excluding high alloy), as well as for grinding.

Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.

• Manually operated, mechanical and pneumatic filter cleaning for long filter life.
• Automatic damper preventing dust from leaking out while cleaning.
• Approved for welding fumes category W3 according to EN 15012-1, third party tested.
• Dust free filter replacement and emptying of dust bin.
• Filter efficiency M6 (EN779), MERV 11 (ASHRAE 52.2, 2017).
