FilterCart W3

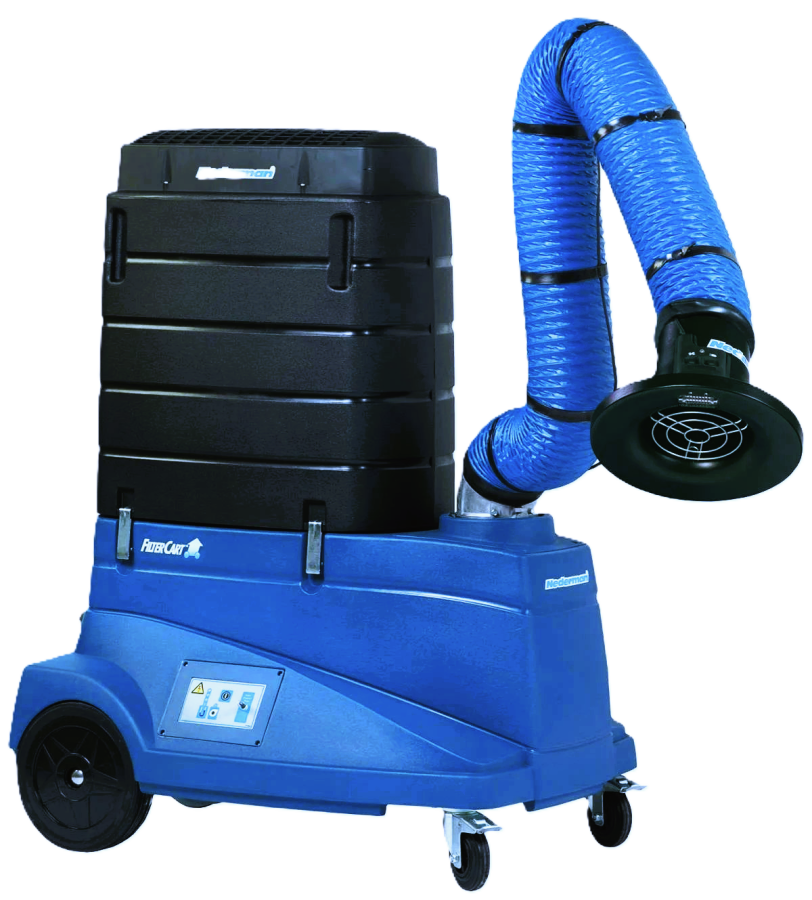

FilterCart+ W3 mobile filter unit for intermittent to light duty welding and extraction applications.
|
The FilterCart+ W3 is a light-weight, portable and easy to manoeuvre dust and fume extractor with a warning signal when the filter is full. It includes an easy-to-position extraction arm which is already fitted to the unit enabling a fast and easy setup. The specially designed metal hood with integrated spotlight creates maximum air velocity at the welding spot. The disposable nanofiber filter offers both significantly longer filter life and higher efficiency than previous versions of the FilterCart.
| Certifications | CE |
| Noise level (dB(A)) | 73 |
| Protection class | IP42 |
| Filter efficiency (%) | 99 |
| Installation | Indoor |
| Material | Housing in roto moulded plastic. Extraction arm in PVC hose and aluminium frame. Fan in steel and aluminium. |
| Suitable for combustible dust | No |
| Material recycling (% weight) | 99 |
| Application | Dust, Fumes |
| Extraction arm diameter (mm) | 160 |
| Airflow (m³/h) | 1050 |
| Power Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| No of phases | 1 |
| Filter type | Cartridge |
| Number of filter elements | 1 |
| Filter material | Nanofiber |
| Electric plug | Euro (CEE 7/2 P+E) |
| Max airflow (m³/h) | 1050 |
| Weight (kg) | 73 |
| Filter cleaning method | One way filter |
| Power (kW) | 0,75 |
| Note | Filter class - F9 (EN779), MERV 14 (ASHRAE 52.2) |
| Filter Area (m²) | 30 |
|
