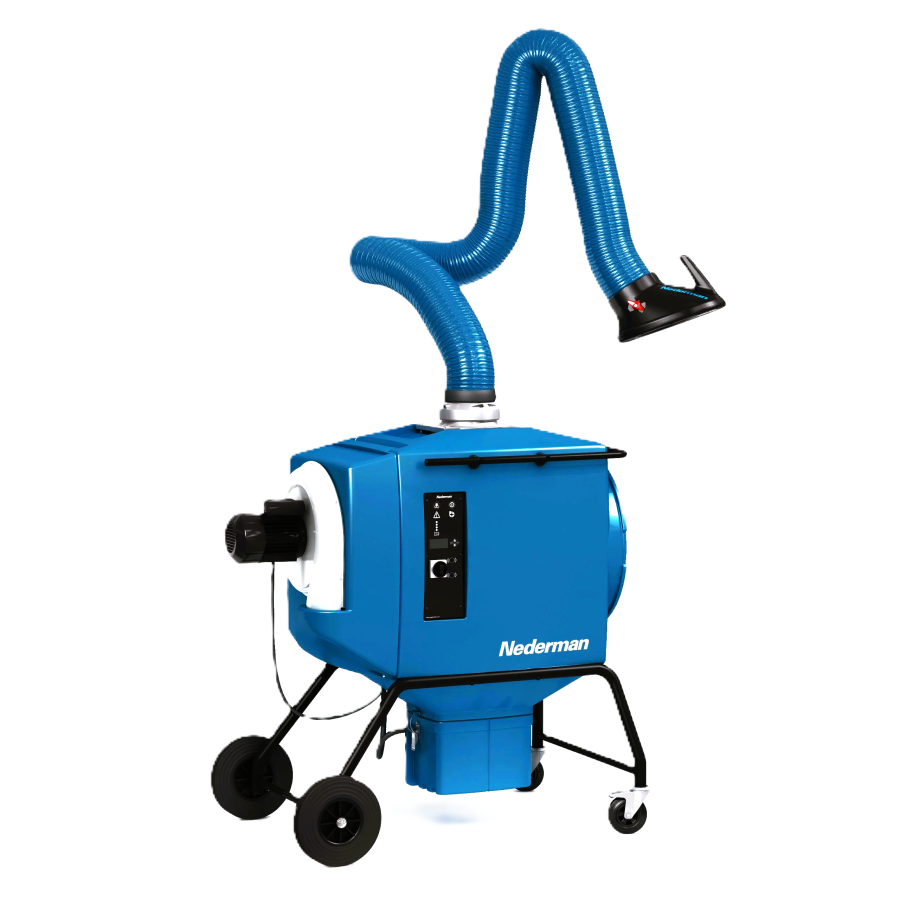

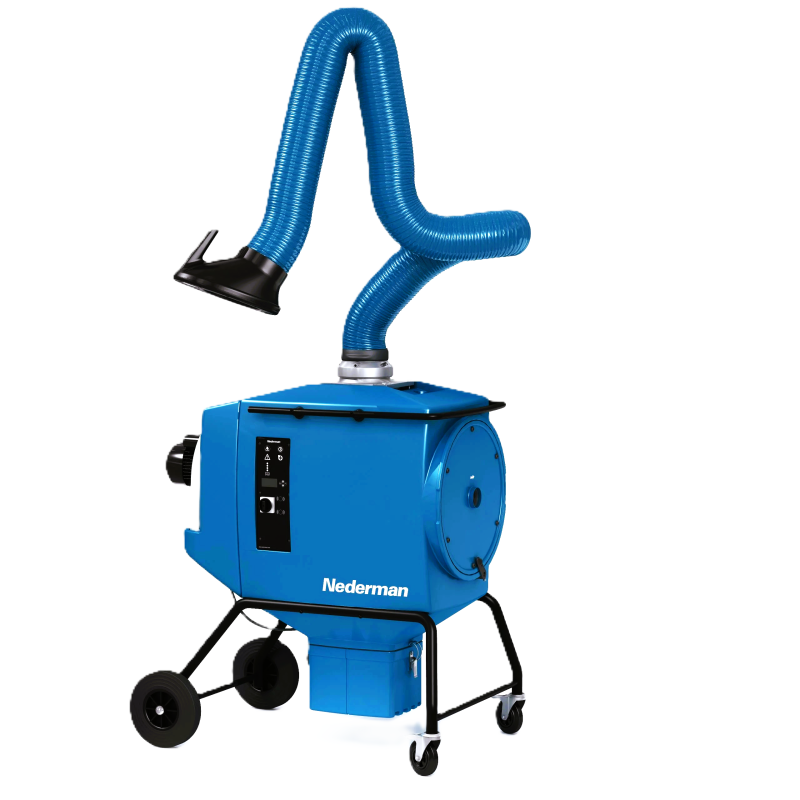

FilterBox 12A NANO is a fully automatic extraction unit with a unique nanofiber filter technology that is ideal for all forms of welding, like MIG, MAG, FCAW, MMA (Stick Welding) including high alloy. The powerful fan offers a maximum extraction capacity of 1,200 m³ per hour (700 CFM), cleaning the air in your workshop quickly and effective. FilterBox 12A NANO has an unique nanofiber filter technology used in the extra-large 17 m² (183 ft²) cartridge. This filter technology offers significant performance benefits, such as higher efficiency and higher surface loading, resulting in more effective filter cleaning and longer cleaning intervals. This provides benefits in terms of longer filter life, higher productivity and lower cost of ownership.

The unit has an advanced filter control system indicating the pressure drop with a series of LED's as well as on the LCD display. When the air flow is too low an audial alarm precedes the automatic, motorized compressed air cleaning sequence. An integrated silencer reduces noise from the fan and outlet air. Additional protection from harmful particles is provided if a HEPA filter is installed (optional).

Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.

• Using the latest nanofiber technology for filtration
• Automatically operated filter cleaning with compressed air for long filter life.
• LCD panel with operating status and menu system for parameter setup and settings. Possibility to connect a welding sensor clamp to automatically start the fan.
• Automatic damper preventing dust from leaking out while cleaning. Dust free filter replacement and emptying of dust bin.
• MERV 15 rated filter *ASHRAE Standard 52.2, 2017, third party tested. Approved for welding fumes category W3 according to ISO 21904-1, third party certified.
