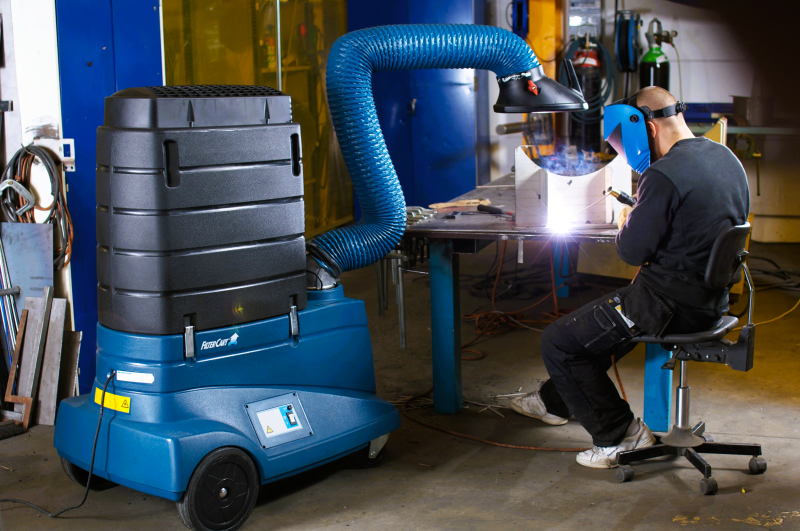

FilterCart+ mobile filter unit for intermittent to light duty welding and extraction applications.

Description

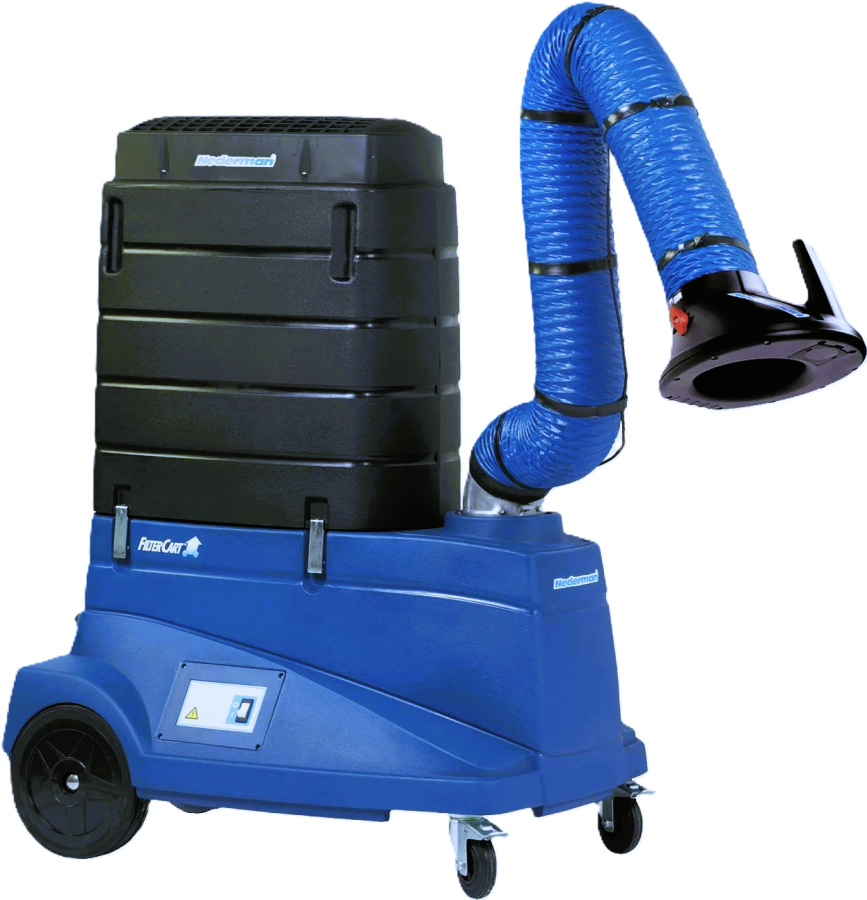

The FilterCart+ is a light-weight, portable and easy to manoeuvre dust and fume extractor that includes an extraction arm Original for easy and reliable hood positioning. The arm is already fitted to the unit enabling a fast and easy setup. The disposable nanofiber filter offers both significantly longer filter life and higher efficiency than previous versions of the FilterCart.

Extraction hood Original with - or without LED spotlight for improved light conditions
If a larger working range is needed, the 3 m (10 ft.) long arm is recommended
Long lasting, disposable nanofiber filter with large filter surface of 30 m2 (323 ft2)
HEPA 13 filter optional available
Filter efficiency F9 (EN779), MERV 14 (ASHRAE 52.2) FilterCart Advanced. Filter efficiency MERV 11 ( FilterCart Original)

Technical data
Certifications	CE
Noise level (dB(A))	73
Protection class	IP42
Filter efficiency (%)	99
Installation	Indoor
Material	Housing in roto moulded plastic. Extraction arm in PVC hose and aluminium frame. Fan in steel and aluminium.
Suitable for combustible dust	No
Material recycling (% weight)	99
Application	Fumes
Extraction arm diameter (mm)	160
Airflow (m³/h)	1050
Filter Area (m²)	30
No of phases	1
Filter type	Cartridge
Number of filter elements	1
Filter material	Nanofiber
Weight (kg)	73
Filter cleaning method	One way filter
Power (kW)	0,75
Filter Area (m²)	30
